Ford Ranger Wildtrak Next Gen 2022on Slimline II Shutter Rack (KRFR024T)

In Stock

$1,692.00 AUD*Price Match Guarantee

Product Load Rating: 50 kg
Bar Type: Shutter 1358 x 1345mm Slimline II
Brand: FRONT RUNNER

Front Runner’s Slimline II Platform works in conjunction with their Flat Load legs simply bolting into your factory shutter tracks.

SKU: FR-KRFR024T Categories: , , , ,

Description

Ford Ranger Wildtrak Next Gen 2022on Slimline II Shutter Rack (1358x1345mm),



The Front Runner Universal Load Bed Leg are specifically engineered for you load bed tracks. Can also be Quick and easy install simply bolt into load bed and attach load carrying platform or cross bars.

Materials used:  Black powder coated aluminium legs with powder coated pressed steel fixings to the shutter tracks.

Components
3x FASS016 – Flat Feet (pair) / 65mm
3x RRAC962 – Track Mount Stud Plate
1x RRSTG07 – SLII Tray – 1345mm(W)X1358mm(L)

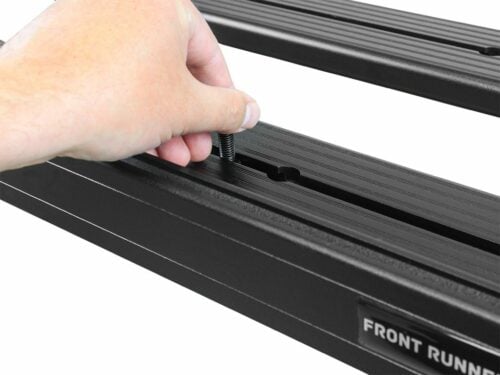

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Fitting Instructions included



Additional information

Manufacturer

FRONT RUNNER
