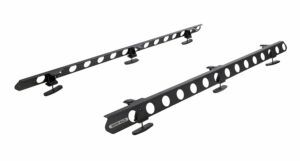

Backbone Mounting System

The Rhino-Rack Backbone is a mounting system for your Ford Ranger or Mazda BT-50. Connecting to your vehicle’s roof via 3 bases on each side, it allows for a Rhino-Rack Pioneer System to be fitted on top. The black trim on the roof is removed and alloy track is riveted in place. The backbone then connects to the track system with bolts and nuts.

Carry more on your Ford Ranger or Mazda BT-50 with the Rhino-Rack Backbone System! The backbone is the support system, that supports the pioneer deck, but to connect to your vehicle you will need the install tracks, RTS525 that are require rivetting to the divet in the roof.

The Rhino-Rack Backbone is a mounting system for your Toyota Land Cruiser 200 Series. Connecting to your vehicle’s roof via 4 bases on each side, it allows for a Rhino-Rack Pioneer System to be fitted on top. For vehicle with existing factory fitted rails, these rails need removing, this is done by loosening bolts from top of vehicle, no need to loosen internal lining. The backbone is then fixed into the existing holes, all bolts and nuts included for install.

The Rhino-Rack Backbone is a mounting system for your Toyota 200 Series, for racks that will clear the sunroof. For vehicle with existing factory fitted rails, these rails need removing, this is done by loosening bolts from top of vehicle, no need to loosen internal lining.

Mount a Pioneer Platform, Tradie or Tray to your 100 Series using the stylish Backbone Mounting System. Connecting to your vehicle’s roof threads under plastic covers, 3 bases on each side,

The Rhino-Rack Backbone is a mounting system for your Toyota Hilux. Connecting to your vehicle’s roof via 2 bases on each side, bolting into the tracks. It allows for a Rhino-Rack Pioneer System to be fitted on top.

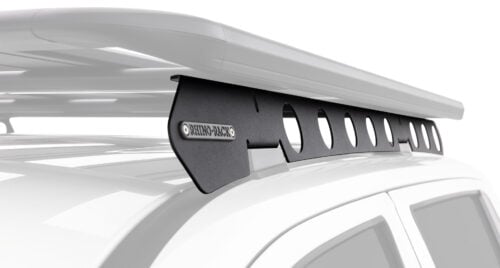

The Rhino-Rack Backbone is a mounting system for your Mitsubishi Triton. Connecting to your vehicle’s roof via 2 bases on each side, it allows for a Rhino-Rack Pioneer System to be fitted on top. To install lift the trim with your fingers and locate the threads, cut away some trim and reinstall remaining trim. Backbone then fits to these existing threads, all bolts and nuts included for install, no need to loosen internal lining.

The Rhino-Rack Backbone is a mounting system for your VOLKSWAGEN Amarok Dual Cab. Connecting to your vehicle’s threads in roof via 2 bases on each side, it allows for a Rhino-Rack Pioneer System to be fitted on top. Remove covers on roof to expose threads in roof. No need to lower internal lining in vehicle.

Connecting to your vehicle’s existing holes in roof via 3 bases on each side, it allows for a Rhino-Rack Pioneer System to be fitted on top.

Existing factory fitted rails need removing, this is done by loosening the interior head lining. The backbone is then fixed into the existing holes, all bolts and nuts included for install.

Approx labour time to install is 4-5 hours.

The Rhino-Rack Backbone is a mounting system for your Land Rover Discovery 3&4. Connecting to your vehicle’s roof via 4 bases on each side, it allows for a Rhino-Rack Pioneer System to be fitted on top. The black trim on the roof is removed, exposing threads in roof.  The backbone then connects to the threads in the roof with bolts and hardware provided. In some situation, factory fitted tracks are installed on Discovery vehicles. In this situation these tracks are removed and the backbone is installed to those threads, again no lining needs to be removed to install this backbone.

The Rhino-Rack Backbone is an interior structure set up on the inside of the JEEP JK Wrangler. Two plates on each side of the JEEP’s Hard Top are connected with the interior frame extending your roof line to carry heavier loads with the max load rating of up to 100kg or 220lb.

The Rhino-Rack Backbone is an interior structure set up on the inside of the JEEP JL Wrangler.
