2 x Canopy Internal Frames – Rhino-Rack Vortex (2 internal support frames and 2 bars)

In Stock

$714.00 AUD*Price Match Guarantee

Product Load Rating: 160 kg
Bar Type: Internal Frames
Brand: Rhino Rack

Internal Ute Canopy arched sub frame, stools and cross bar. DIY kit, made to suit most types of canopy, load rated to 160kgs over two frames.

Description

2 x Canopy Internal Frames – Rhino-Rack Vortex (2 internal support frames and 2 bars)

Made to suit most type of canopies, Frames and bars are load rated to 160 kgs over two frames on bitumen and approx 120kgs on dirt roads. This internal frame is structural steel tubing, rolled and supplied as a DIY kit for most canopies . Black p/coated steel frame within the canopy. All alloy components above the canopy. All subframe tubing is adjustable in width and height.

“Click here” – more information on Dynamic vs Static load ratings, and ratings for roof top tents. (all good for most roof top tents).

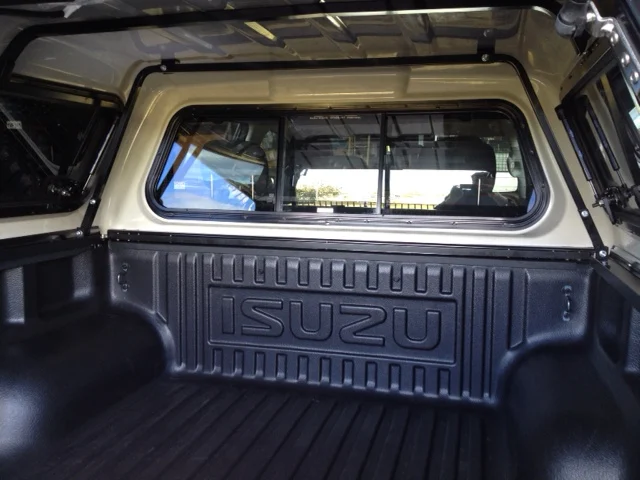

Black cross bar provided as 1260mm Rhino Vortex Bar. No floor space lost, as the frame is only within the area of the canopy. Does not interfere with uteliners or pull out draws, as it is supported at the top of the ute bin, (at the base of the canopy).

The external top posts are 50mm tall and the cross bar is 35mm in height, making the canopy bar approx 85mm. To level this bar with preinstalled cab bars, spacers can be provided where extra leveling is required. Spacers can be installed on the canopy posts or can be provided for some Rhino branded roof racks that are fitted to the driving cab.

These frames are suitable for most canopies, and require some alterations where there are double skinned canopies and where internal linings are installed.

Wider bars are also available on request. The alloy stools above the canopy, support many different cross section bar profiles.  The stools can be positioned on the canopies to suit rib spacing and desired front to back positioning on the canopy.

If you have a Thule aero or Thule wing bar we can match the profiles. Please specify when ordering.

Will fit ARB Ascent, ARB Classic and ARB Classic Plus canopies. Will also fit EGR canopies (not Gen 3 with internal lining).

*Please note these canopy frames can’t be fitted to Aeroklas canopies*

FITTING INSTRUCTIONS

Components:

2 x VA126 Black Bars 1260mm

2 x internal canopy tube frames with alloy posts RRW-CANBAR
