Rocky Mounts MonoRail 1.25″ 2 Bike Carrier (10003)

Description

Rocky Mounts MonoRail 1.25″ 2 Bike Carrier (10003)

The MonoRail is the most versatile rack in the RockyMounts line up. It has the capacity for all styles of bikes; from skinny tire road machines, up to heavy fat tire E-bikes, this rack has you covered.

Overview

• Carries 2 bikes ONLY, up to 27kgs per tray (54kgs total). 1.25″ variant is NOT compatible with Add-On

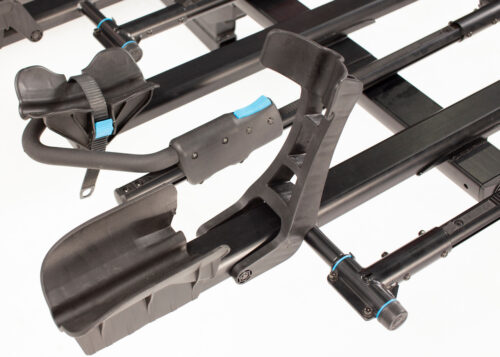

• No contact with frame, secures bicycle by front wheel
• Carries road tires up to 127mm” fat bike tires, and diameters from 508mm” to 736mm”
• Compatible with bicycle wheelbases from 914mm” to 1270mm”

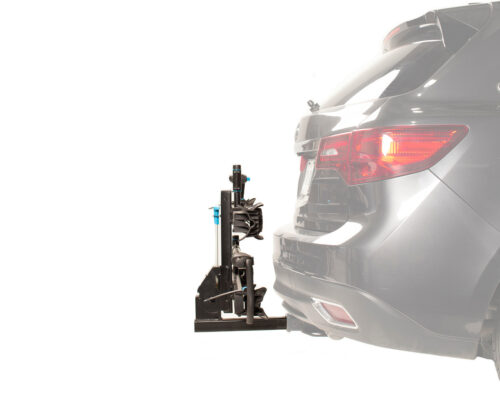

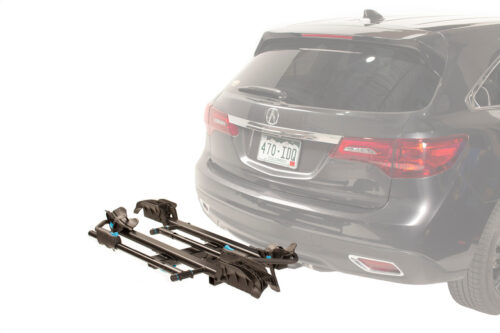

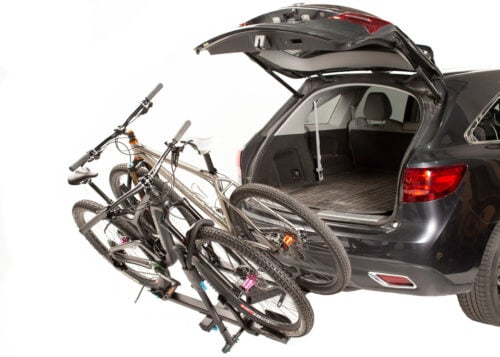

• Folds flat against the vehicle and tilts down 30 degrees to allow for hatch access
• Includes anti-wobble hitch pin
• If you want to fit both 31mm” and 50mm” size hitches, get the 1.25″ and our adaptor sleeve. This configuration does not allow for the use of an Add-On

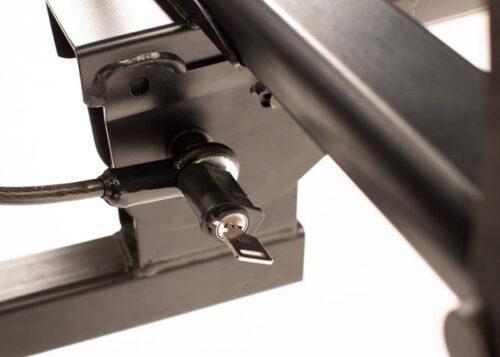

• Includes locking hitch bolt, cable lock, and standard lock pods, keyed alike
• Note: Cable lock is not intended to be used while driving. Road vibrations can cause unintended wear on frames, rims, and the rack itself. Please remove cable lock when vehicle is in motion
• Not for use with fender equipped bicycles, or on Class I hitch receivers
• Rack weight 17.5kgs (shipping weight 24kgs)
• Fit Memo- For cargo vans a fit check is required. Depending on hitch manufacturer, handlebar width, vehicle wheelbase, and accessories an 8″ Hitch Extension may be required for handlebars to clear the door
• Hitch extension will be required for the following vehicles: Santa Fe, Sorento, Rav 4, Compass, Alfa Romeo’s, 2nd Gen Forester (and typically other gens). Their exhaust outlet will burn racks when in the folded position without hitch extension or exhaust diverter.

Product Specifications

• Bike Capacity: 2
• Manufacturer: Rhino-Rack

Package Shipping Dimensions

• Lenght: 118cm
• Width: 25cm
• Height: 28cm
• Weight: 24kg

Fitting Instructions

View instructions
