Caravan & Camper Trailer A-Frame & Bike Carrier

Caravan & Camper Trailer A-Frame & Bike Carrier

0 out of 5


or 4 fortnightly payments of $168.75 with Afterpay More info

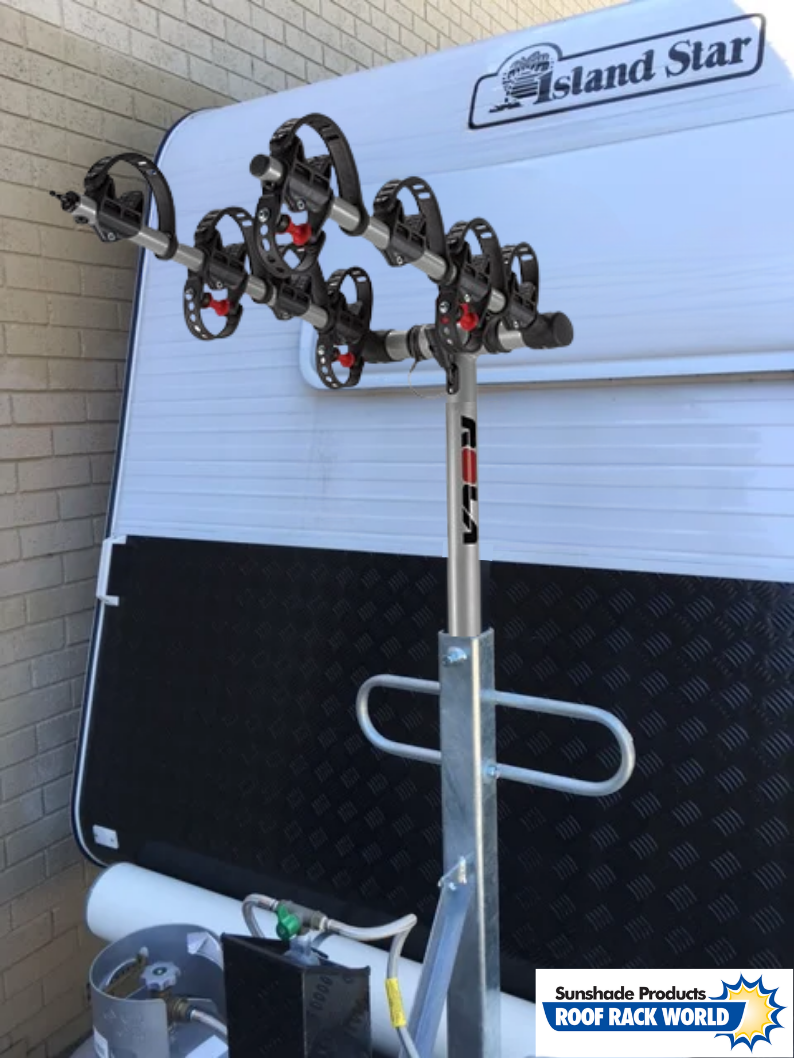

Carry up to 4 bikes on the front of the caravan, with this steel frame and Rhino bike carrier. Most stable way to transport bike on your caravan.

SKU: RRW-CFRAME Categories: ,


Can transport up to 4 bikes on the front A frame of the caravan. Simply U bolts onto draw bar of caravan, sits above gas bottles or tool boxes.

Will require approx 100mm clearance to allow for fitment of carrier frame, prefered to be installed in front of caravan body or camper-trailer body.

Height of bike carrier can be adjusted to suit different vans. Will need some space between caravan and gas bottles of approx 80mm.


  1. Rhino 4 Bike carrier  RBC008 or similar with 50mm post
  2. Steel post frame with and U bolts diagonal brace

Steel frame is installed with u bolt connectors provided. RBC008 bike carrier base is removed, leaving the 50 x 50mm post that simply slides into the top of the steel frame, height is set with a grub screw. Load your bikes, adjustable cradles and straps and hit the road.

Can use the bike carrier on rear of vehicle as normal bike carrier, when not towing caravan by installing the base back onto the bike carrier.

Custom made frames available, send me a drawing or photo of your A frame for a quote.
