Flexiglass FlexiXover Canopy Vortex RLT600 Trackmount Black 2 Bar Roof Rack (JA8104)
$845.00 AUD
Product load rating is how much weight can be added on top of the rack while driving on a paved or sealed road.
Your car’s maximum load capacity may be lower than the product load rating. In that case, the lowest load rating applies. Please refer to your vehicle manufacturer’s specifications.
Load rating overview
Dual cab canopy load capacities vary significantly depending on the canopy type, material and brand/manufacturer. Dynamic (moving) loads typically ranging from 40kg to 100kg (load distributed evenly) and static (stationary) loads up to 3 times that value.
For dual cab canopies, the distinction between dynamic and static loads is particularly crucial, as the added stress from movement (e.g., driving on uneven terrain) requires careful load distribution.
Internal arch supports or top mounted tracks are recommended to increase the capacity of your canopy to help carry your gear.
Two bars and internal arch supports on a standard dual cab will support a tent up to 1.5m long. For tents over 1.5m and up to 2.2m, the manufactures of roof top tents recommend supporting the tent on a platform or 3-4 bars.(this may not be possible on some canopies
Why is the load rating displayed lower than on other websites?
Most other websites only display the load rating of the product. When possible, we aim to provide the true and real load rating, which needs to take into consideration the car make and model, the rack, and the fittings used. We have been fitting racks for over 50 years, so we have the experience to provide true and accurate load ratings.
Important: Overloading beyond these ratings can damage your vehicle, void warranties, or cause accidents. Always include the weight of the rack and accessories in your calculations.

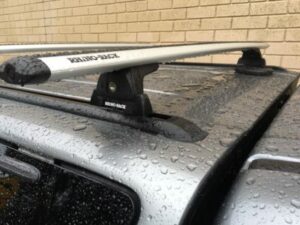

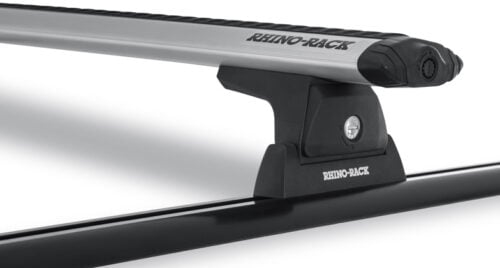

This Vortex Quick Mount RLT600 roof rack system is fixed to your canopy using a specialised track. However, the legs and cross bars can be easily removed when they are not required using a simple trigger locking system. This system is specifically designed to fit a Extra Cab FlexiXover Canopies
ONLY AVAILBLE IN BLACK
- Description
- Additional information
- Specifications
- FITTING INSTRUCTIONS
Description

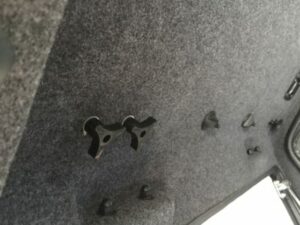

Flexiglass longitudinal rails are easily removed, and these tracks use those existing holes in the canopy, plus drill a number of new holes and bolt down the new tracks.
“Click here” – more information on Dynamic vs Static load ratings, and ratings for roof top tents.
Tracks have a carrying capacity of approx 80kgs on bitumen roads, and carrying capacity of approx 60kgs on corrugated and dirt roads. Cross Bars slide and tighten to the tracks at your required location. Tracks require fixing to Extra Cab FlexiXover Canopies by drilling and fixing with bolts and nuts.
Utilising our highly regarded Vortex bars, this system offers you compatibility with a wide selection of Rhino-Rack accessories. So whether you’re a traveller, kayaker, surfer, cyclist or tradesperson – the Vortex RLT600 roof rack system has you covered.
Key Features:
- Installation or removal in three easy steps, no tools required
- Ideal for low clearance
- A lockable cover plate that protects the locking mechanism, Masterkey compatible
- Fits the Rhino-Rack Vortex Bar, with a fitting kit available for the Heavy Duty Bar and Pioneer models
- The base and leg allows for 33 degrees of swivel to suit tracks mounted on a countoured or curved surface
- Single person operation allows quick and easy attachment
- Simple trigger locking system
- Maximum load capacity across 2 bars is 100kg (always refer to the vehicle maximum load rating and use the lower of the two)
- Tested to AS1235:2000 (Australian), ISO11154:2006 (City Crash/International) standards Lifetime Warranty
Components:
2x VA126B Vortex Bars (1260mm Black)
1x RLT600 Quick Mount Legs (4x)
1x RTCFG02: 1000mm, 1100mm (including end caps) tracks to suit Extra Cab FlexiXover Canopies
Additional information
Manufacturer | Rhino-Rack |
---|
- Bar Length: 1260mm
- Colour: Silver
- Bar Type: Vortex
- Warranty: Lifetime
- # Of Bars: 2
