Citroen Berlingo II 4dr Van 03/09on Rhino-Rack Commercial roof rack (pr) (JA0658)
Product load rating is how much weight can be added on top of the rack while driving on a paved or sealed road.
Your car’s maximum load capacity may be lower than the product load rating. In that case, the lowest load rating applies. Please refer to your vehicle manufacturer’s specifications.
Load rating overview
STATIC
When the vehicle is parked or stationary.
ON ROAD
Driving on paved or sealed roads.
OFF ROAD
Driving on unsealed or dirt roads.
- Static load rating: This is the maximum weight that can be added while the car is stationary. It can usually hold three times the on-road load rating. So, if you have a tent, that’s why you can sleep in it.
- On-road load rating: This is the weight limit while driving on sealed roads. This is what the product load rating refers to.
- Off-road load rating: This is the weight limit on unsealed roads. It is typically lower than the on-road capacity by 30%.
Why is the load rating displayed lower than on other websites?
Most other websites only display the load rating of the product. When possible, we aim to provide the true and real load rating, which needs to take into consideration the car make and model, the rack, and the fittings used. We have been fitting racks for over 50 years, so we have the experience to provide true and accurate load ratings.
Important: Overloading beyond these ratings can damage your vehicle, void warranties, or cause accidents. Always include the weight of the rack and accessories in your calculations.

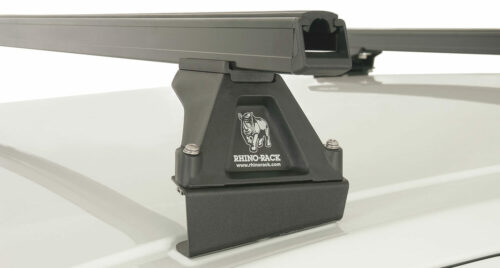

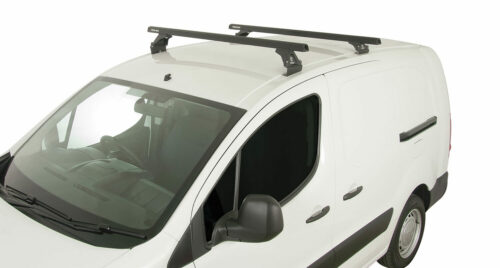

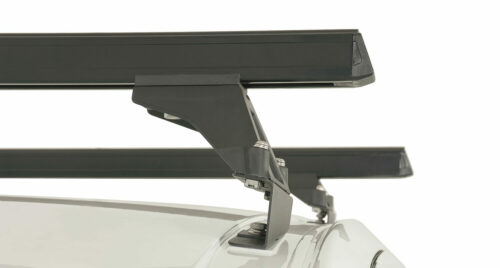

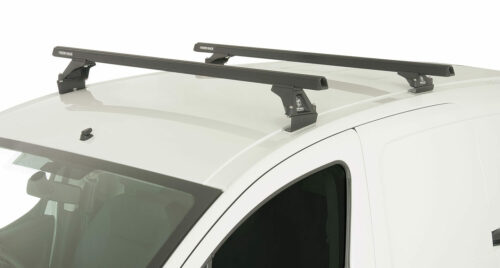

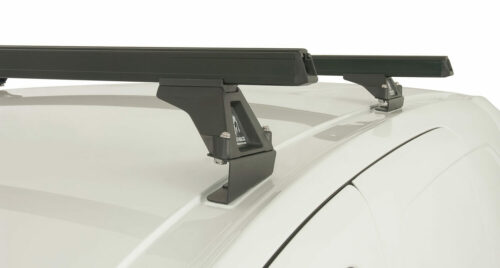

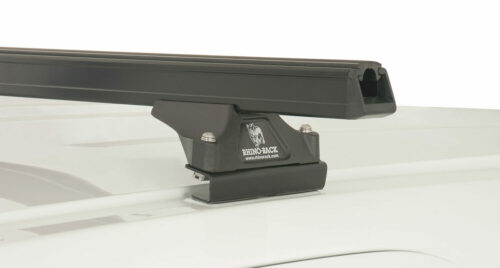

This Heavy Duty RLTF system is attached to a set of factory trackmounts already on your vehicle. This product fits to your vehicle providing a sleek and ultimately stable roof rack system that is also easily removable. The high profile design is ideal for highly curved roofs and when extra height is required to level out multiple bars. Lifetime warranty is the surest guarantee that we trust the Heavy Duty RLTF system for all your outdoor and adventure needs.
- Description
- Additional information
- Specifications
- FITTING INSTRUCTIONS
Description
Utilising our highly regarded Heavy Duty bars, this system offers you compatibility with a wide selection of Rhino-Rack accessories. So whether you’re a traveller, kayaker, surfer, cyclist or tradesperson – the Heavy Duty RLTF Trackmount roof rack system has you covered.
Key Features:
- Installation or removal is simple
- The great benefit of this roof rack system is the ability to slide your cross bars along the track to accommodate various sized loads
- High profile design is ideal for highly curved roofs
- Lifetime Warranty
- Allows extra height if required to level out multiple bars
- Having a trackmount system allows for a heavier load rating
- Tested to AS1235:2000 (Australian), ISO11154:2006 (City Crash/International) standards Lifetime Warranty
Components:
2x RB1375B Heavy Duty Bars (Black 1375mm)
1x RLTPPP legs to suit Citroen Berlingo (2x)
1x RLTFPP legs to suit Citroen Berlingo (2x)
Additional information
Manufacturer | Rhino-Rack |
---|
- Leg Profile: RLTF
- Bar Style: Overhang Bar
- Mount Style: Track Mount
- # Of Bars: 2
- Bar Type: Heavy Duty
- Warranty: Lifetime
- Colour: Black
- Fixture: Fixed
- Bar Length: 1375mm
