Universal Anchor Kit Includes M8 Fasteners Van Floor

Description

Creates a mechanically fastened sub floor in the van
using existing cargo tie-down points.

• Removes the need for direct gluing of van sub floor.
• Maintains function of cargo tie-down points in van.
• Generic fixing kit suitable for most van models.

Features

• 6x anchoring caps, generic size spacers and M8 high tensile fasteners supplied in kit.
• Factory tie-down bolts / lashing points may be refitted over caps if adequate bolt length remains.
• Anchor cup can be flipped to accommodate large factory lashing points
• Alternative thread types and shims sizes may be required for some van models, KRS is not responsible for supply of alternative fasteners outside this kit.
• If van doesn’t use M8 fasteners, purchase the anchor kit excluding fasteners.

Installation

• Measure height difference between low point in van floor and underside of plywood at each tie-down location.

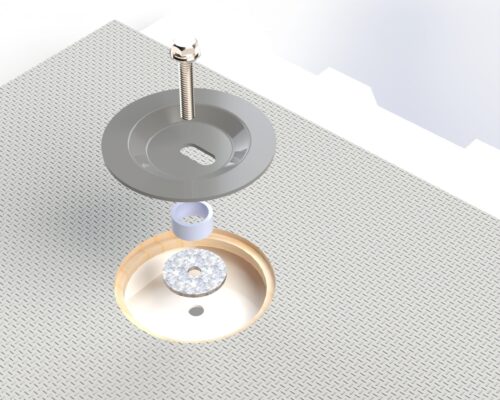

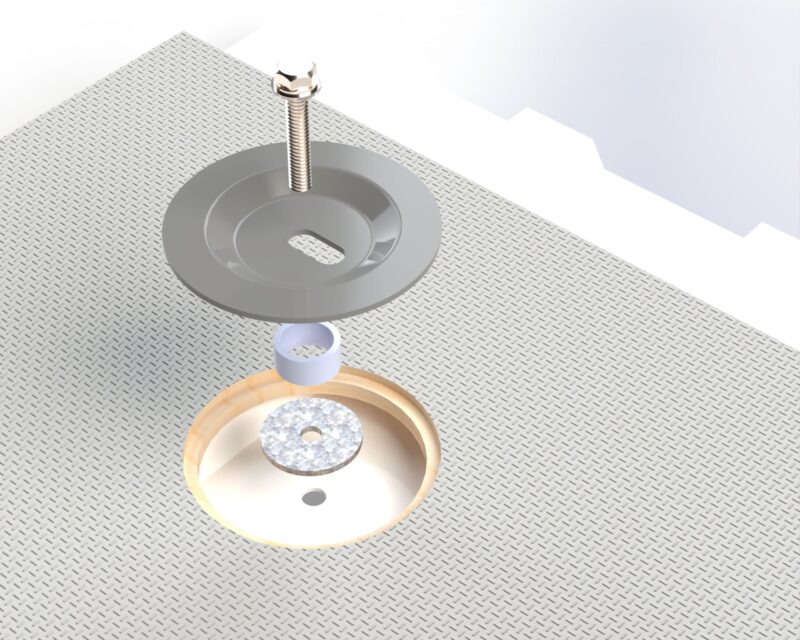

• Fill measured cavity space through bolt with supplied spacers and any additional shims (if required) to take up the gap.

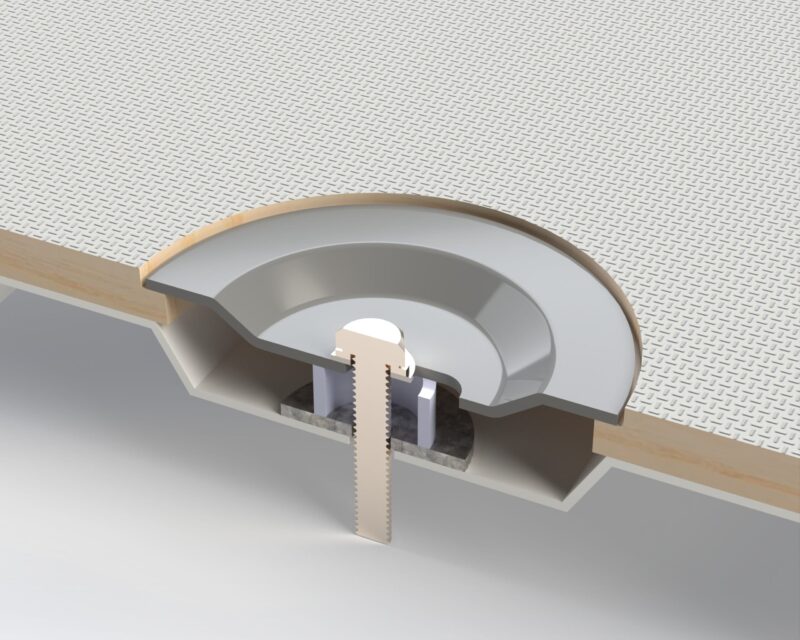

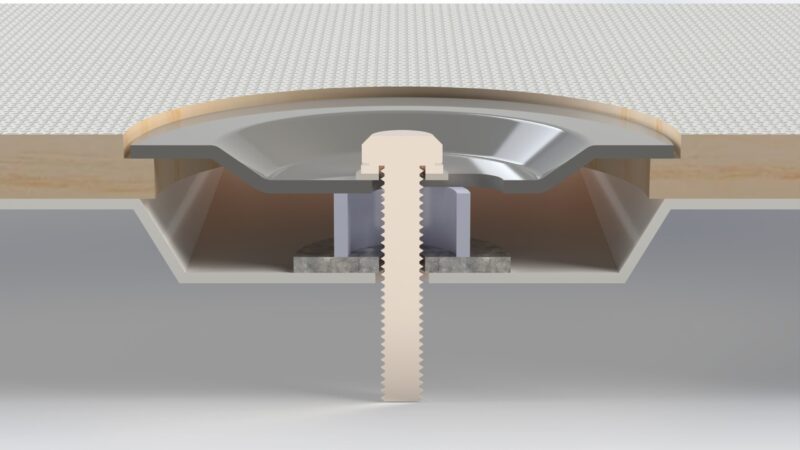

• Tighten to torque, the metal cup should be putting compression against both the plywood sub floor and the cavity spacers, bottoming out on the van floor.
• Failure to do so and over tightening may cause plywood layers bow across the floor.

Note: Fasteners supplied in universal kit are generic, thread types & lengths should be validated by installer before trying to use the supplied fasteners.
