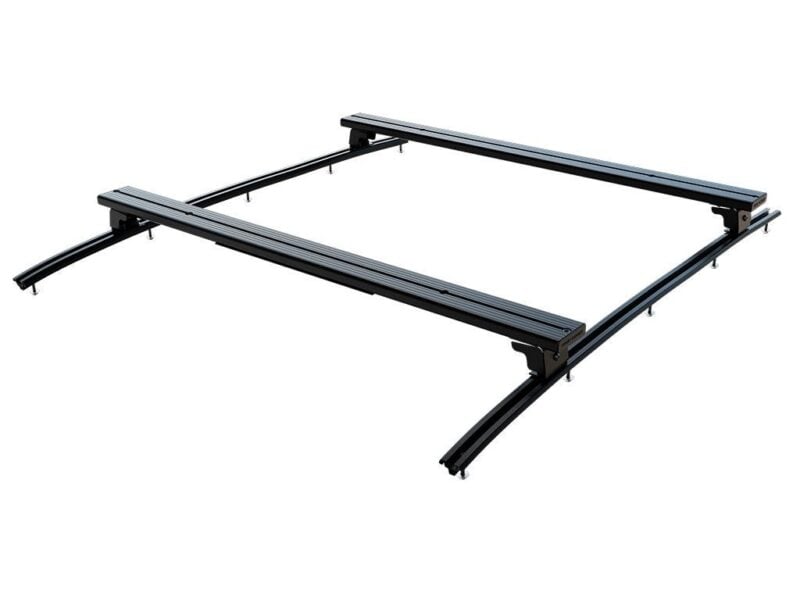

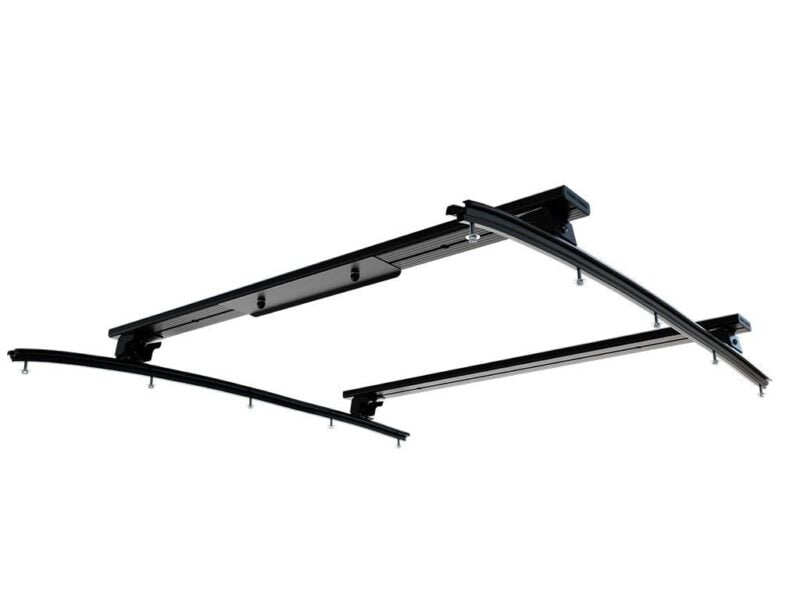

Toyota Hilux Revo DC (2016-Current) Load Bar Kit / Track & Feet (KRTH022)

KRTH022 – Toyota Hilux Revo DC (2016-Current) Load Bar Kit / Track & Feet – by Front Runner

Consisting of:
2x FASS024 – Foot Set / 50mm – 60mm
1x LBSK013 – Load Bar Pair 1165mm(W)
1x TRTH006 – Toyota Revo DC (2016-Curr) Tracks/1300mm(L)
1x WDLB001 – Load Bar Wind Deflector / 10mm

Material Used:
Black epoxy powder – coated T6 aluminium

Approximate Installed Weight: 8.44kg (18.61lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8″) to the height of the Foot, Grab-On Foot listed above.

If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8″) to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.

If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8″) to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 115mm (5″)
Length: 1320mm (52″)
Height: 255mm (10″)

Shipping Weight:
Weight: 7.14kg (16lbs)
