Toyota Hiace LWB & SLWB 2019 Onwards KRS Minirack Foot 2 bars (02TH19.2FR)
$518.00 AUD
Product load rating is how much weight can be added on top of the rack while driving on a paved or sealed road.
Your car’s maximum load capacity may be lower than the product load rating. In that case, the lowest load rating applies. Please refer to your vehicle manufacturer’s specifications.
Load rating overview
STATIC
When the vehicle is parked or stationary.
ON ROAD
Driving on paved or sealed roads.
OFF ROAD
Driving on unsealed or dirt roads.
- Static load rating: This is the maximum weight that can be added while the car is stationary. It can usually hold three times the on-road load rating. So, if you have a tent, that’s why you can sleep in it.
- On-road load rating: This is the weight limit while driving on sealed roads. This is what the product load rating refers to.
- Off-road load rating: This is the weight limit on unsealed roads. It is typically lower than the on-road capacity by 30%.
Why is the load rating displayed lower than on other websites?
Most other websites only display the load rating of the product. When possible, we aim to provide the true and real load rating, which needs to take into consideration the car make and model, the rack, and the fittings used. We have been fitting racks for over 50 years, so we have the experience to provide true and accurate load ratings.
Important: Overloading beyond these ratings can damage your vehicle, void warranties, or cause accidents. Always include the weight of the rack and accessories in your calculations.
Heavy Duty 2 Bar system for the Toyota Hiace 2019 on.
- Description
- Additional information
Description
Toyota Hiace LWB & SLWB 2019 Onwards KRS Minirack Foot 2 bars (02TH19.2FR)
Features

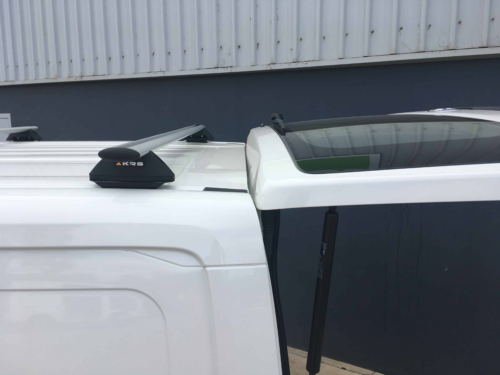

KRS Minirack Foot to suit Toyota Hiace 2019+ Models
- Fits to the front mounting point and one of the rear mounting points (please specify if you would like 2 rear mounting bars)
- Toyota Hiace Roof Racks utilise foot plates specific to the vehicles mounting points
- Provides a streamlined appearance designed to enhance the look of your vehicle
- KRS Roof Racks have virtually no wind noise
- Non-corrosive stainless steel fasteners
Specifications
- Suits all Toyota Hiace models 2019 onwards (LWB & SLWB).
- 1600mm bar length
- Load rated at 100 kg
- Load capacity to be evenly distributed across all bars.
- If the KRS roof rack system has a carrying capacity higher than the vehicle – do not exceed the vehicle limit, this takes precedence.
- Do not exceed the vehicle or KRS system maximum carrying capacity. Overloading will void both KRS and vehicle warranty.
- All Australian manufactured

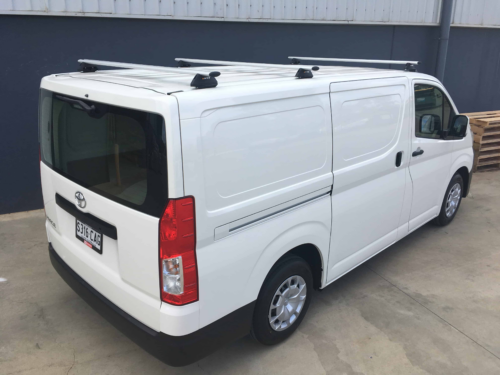

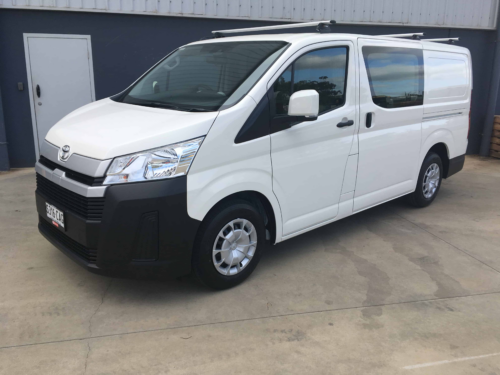

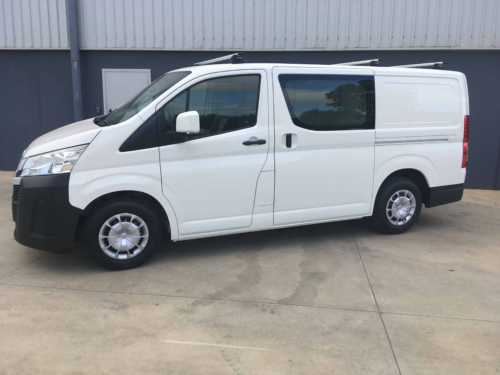

Please note the images show three bars, however this is sold as a 2 bar system.
See the three bar option here.
Additional information
Manufacturer | KRS |
---|
