Toyota Hiace LWB 2019on Reconn-Deck 4 Bar System with Rhino-Rack Backbone (JC-01608)
Product load rating is how much weight can be added on top of the rack while driving on a paved or sealed road.
Your car’s maximum load capacity may be lower than the product load rating. In that case, the lowest load rating applies. Please refer to your vehicle manufacturer’s specifications.
Load rating overview

STATIC
When the vehicle is parked or stationary.

ON ROAD
Driving on paved or sealed roads.

OFF ROAD
Driving on unsealed or dirt roads.
- Static load rating: This is the maximum weight that can be added while the car is stationary. It can usually hold three times the on-road load rating. So, if you have a tent, that’s why you can sleep in it.
- On-road load rating: This is the weight limit while driving on sealed roads. This is what the product load rating refers to.
- Off-road load rating: This is the weight limit on unsealed roads. It is typically lower than the on-road capacity by 30%.
Why is the load rating displayed lower than on other websites?
Most other websites only display the load rating of the product. When possible, we aim to provide the true and real load rating, which needs to take into consideration the car make and model, the rack, and the fittings used. We have been fitting racks for over 50 years, so we have the experience to provide true and accurate load ratings.
Important: Overloading beyond these ratings can damage your vehicle, void warranties, or cause accidents. Always include the weight of the rack and accessories in your calculations.

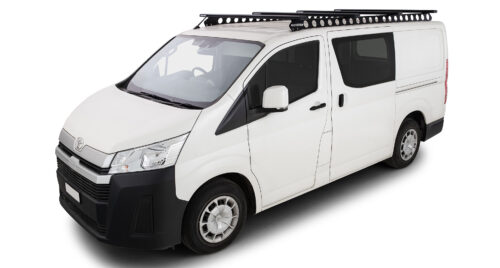

The Reconn-Deck 4 Bar Roof Rack System with Rhino-Rack Backbone is the ultimate load carrying solution for your 2019on LWB Toyota HiAce!
- Description
- Additional information
Description
Toyota Hiace LWB 2019 onwards Reconn-Deck 4 Bar System with Rhino-Rack Backbone (JC-01608)

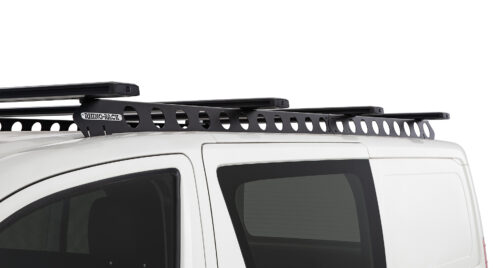

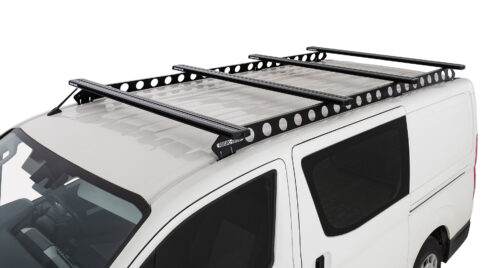

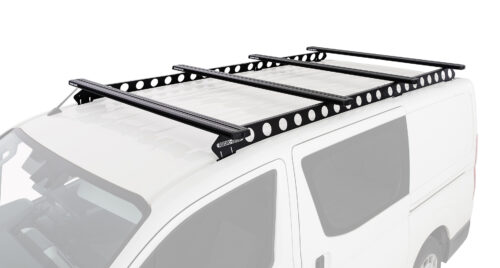

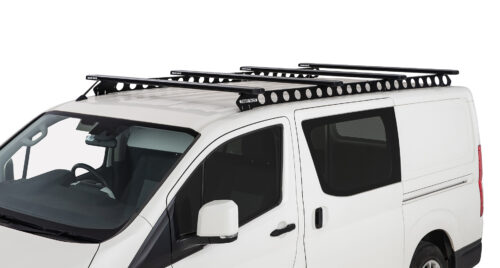

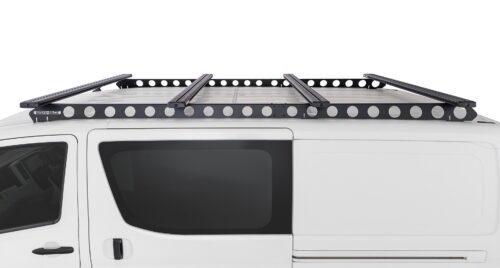

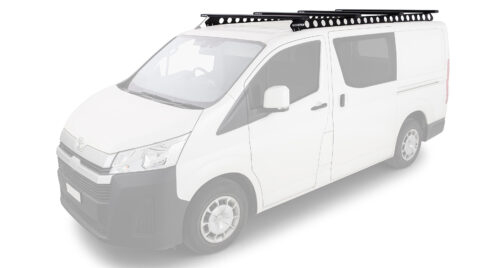

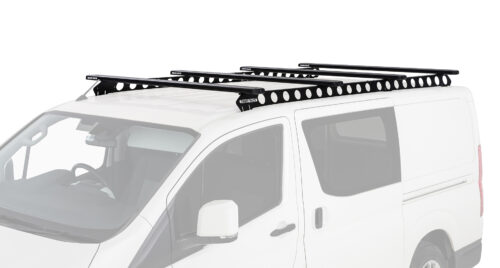

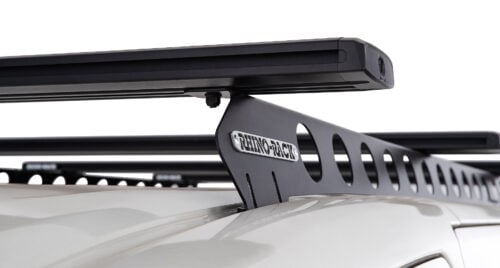

The Rhino-Rack Backbone is a mounting system for your Toyota Hiace. Connecting to your vehicle’s roof via 3 secure mounting points on each side, this system includes 4x Reconn-Deck crossbars to be fitted on top. This is the perfect setup for both work and leisure. Take your Toyota HiAce on the jobsite during the week carrying your ladder, tools and Sunseeker Awning. Simply swap out your ladder and tools for camping supplies as the weekend comes around for the ultimate van camping setup!
Overview

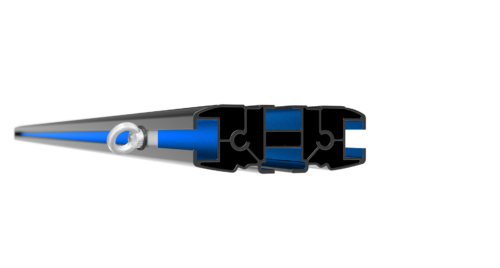

Utilising our Reconn-Deck bars, this system offers you compatibility with a wide selection of Rhino-Rack accessories. So whether you’re a traveller, cyclist, surfer or tradesperson – the Reconn-Deck Bars with Rhino-Rack Backbone system has you covered.
• Stylish and aerodynamically designed to minimise wind drag and noise on the road.
• Made from non corrosive Stainless Steel allowing you maximum carrying capacity
• 120kg load limit
• 1.5 hour installation time
• Backbone allows for 4th bar to be fitted
• 2 piece Backbone system, allowing for easier installation for a single fitter
Product Specifications
- Bar Type: Reconn-Deck
- Bar Style: Overhang Bar
- Manufacturer: Rhino-Rack
Components:

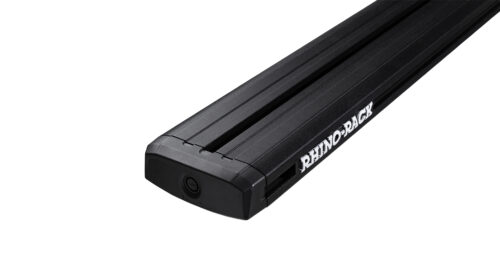

4 x Rhino Reconn-Deck Bar 1650mm (RDB165)

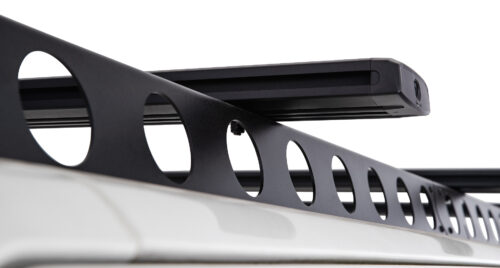

1 x RTHB3 Backbone Mounting System
2 x SP308 Backbone T Bolt kit
Fitting Instructions
Additional information
| Bar Type | Reconn-Deck |
|---|---|
| Bar Style | Overhang Bar |
| Manufacturer | Rhino-Rack |
