Pioneer Maxtrax and Awning Support Bracket (RRW-MTBSB)
In Stock
$119.00 AUD
This bracket is designed to enhance the Rhino-Rack Maxtrax Side Bracket and any other awning brackets, providing extra support for Pioneer platforms. Alternative products for the original 43197 part number.
International shipping available. Calculate your shipping cost below.
- Description
- Additional information
- Specifications
- FITTING INSTRUCTIONS
Description

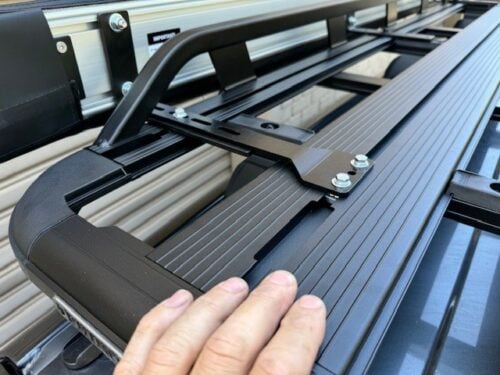

RRW Pioneer Maxtrax Support Bracket Extension (RRW-MTBSB) (can also be used to reinforce awning brackets)
This bracket is designed to enhance the Rhino-Rack Maxtrax Side Bracket 43159, providing extra support to carry three or more recovery tracks on the Pioneer Platform or Tradie Tray.
43159 bracket is sold separately
- Alternative part for the 43197 brackets
- Zwiftlocs and traditional channel nuts are provided so suit a large range of roof racks. Provides extra support for the Pioneer Recovery Track Side Bracket 43159.
- Constructed from 5mm steel, treated with black passivate and finished in black powder-coat to prevent fading and rust.
- Allows for the transport of two additional Recovery Tracks.
- Only needed for the Pioneer Platform or Pioneer Tradie.
Components:
| Part | Qty |
| Recovery Track Support Bracket | 2 |
| M6x25mm Hex Bolt | 4 |
| M6x20mm Hex Bolt | 2 |
| M6 Spring Washer | 2 |
| M6 Flat Washer | 2 |
| M6 Channel Nut | 2 |
| M6 Zwiftlocs | 2 |
Additional information
| Manufacturer | Roof Rack World |
|---|
- Warranty: 3 Years
- Dimensions: 294
- Product Weight: 1
- Dimensions: 70
- Dimensions: 5
- Weight: 0.77kg
