2 x Canopy Internal Frames with External Top Posts (No Crossbars)

In Stock

$476.00 AUD*Price Match Guarantee

Product Load Rating: 160 kg
Bar Type: Internal Frames
Brand: Rhino Rack

Internal Ute Canopy arched sub frames and stools. DIY kit, made to suit most types of canopy, load rated to 160kgs over 2 frames.

Description

2 x Canopy Internal Frames with External Top Posts (No Crossbars)

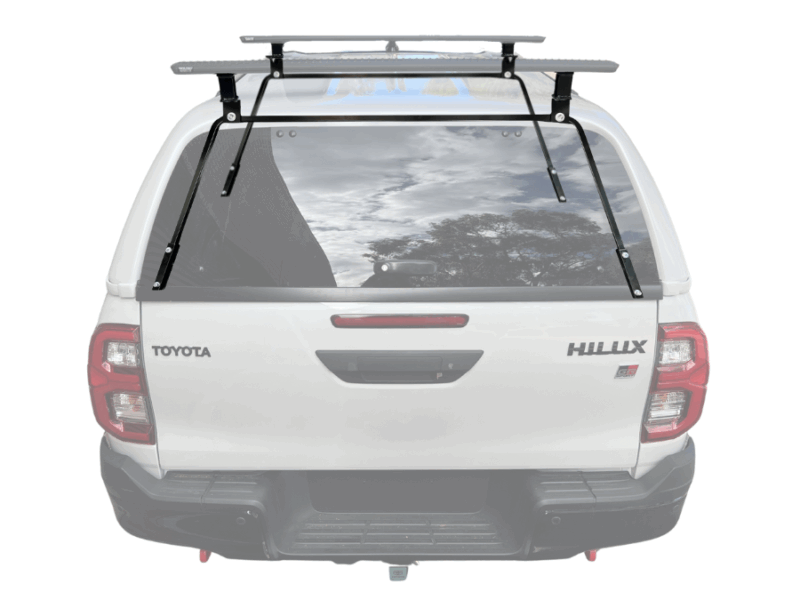

Internal Ute Canopy arched sub frames and stools. Made to suit most type of canopies,  load rated to 160kgs over 2 frames on sealed and approx 120kgs on un sealed roads. This internal frame is structural steel tubing, rolled and supplied as a DIY kit for most canopies . Black p/coated steel frame within the canopy. All alloy components above the canopy. All subframe tubing is adjustable in width and height.

“Click here” – more information on Dynamic vs Static load ratings, and ratings for roof top tents.

No floor space lost, as the frame is only within the area of the canopy. Does not interfere with uteliners or pull out draws, as it is supported at the top of the ute bin, (at the base of the canopy).

The external top posts are 50mm tall.

These frames are suitable for most canopies, and require some alterations where there are double skinned canopies and where internal linings are installed.

Crossbars are available on request. The alloy stools above the canopy support many different cross section bar profiles.  The stools can be positioned on the canopies to suit rib spacing and desired front to back positioning on the canopy.

Please contact our friendly staff for more info if required.

Will fit ARB Ascent, ARB Classic and ARB Classic Plus canopies. Will also fit EGR canopies (not Gen 3 with internal lining).

*Please note these canopy frames can’t be fitted to Aeroklas canopies*

If you need cross bars see links below for either RB1250B Commercial bars or VA126B Vortex bars

Learn more about vehicle load rating HERE
