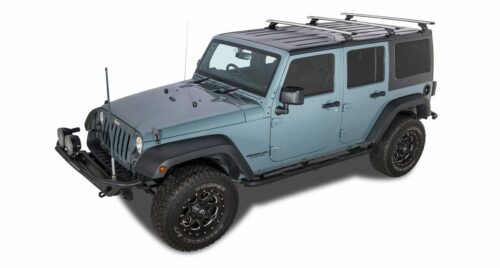

Jeep Wrangler JK 4dr Hard Top 02/11-03/19 Rhino-Rack Vortex RCL Legs with Backbone (3 bars) (JC-01312)
Product load rating is how much weight can be added on top of the rack while driving on a paved or sealed road.
Your car’s maximum load capacity may be lower than the product load rating. In that case, the lowest load rating applies. Please refer to your vehicle manufacturer’s specifications.
Load rating overview
STATIC
When the vehicle is parked or stationary.
ON ROAD
Driving on paved or sealed roads.
OFF ROAD
Driving on unsealed or dirt roads.
- Static load rating: This is the maximum weight that can be added while the car is stationary. It can usually hold three times the on-road load rating. So, if you have a tent, that’s why you can sleep in it.
- On-road load rating: This is the weight limit while driving on sealed roads. This is what the product load rating refers to.
- Off-road load rating: This is the weight limit on unsealed roads. It is typically lower than the on-road capacity by 30%.
Why is the load rating displayed lower than on other websites?
Most other websites only display the load rating of the product. When possible, we aim to provide the true and real load rating, which needs to take into consideration the car make and model, the rack, and the fittings used. We have been fitting racks for over 50 years, so we have the experience to provide true and accurate load ratings.
Important: Overloading beyond these ratings can damage your vehicle, void warranties, or cause accidents. Always include the weight of the rack and accessories in your calculations.

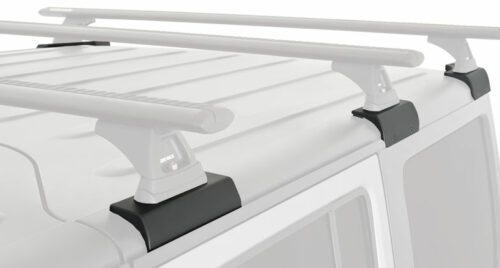

The Vortex Quick Mount RCL roof rack system attaches to the Rhino-Rack Backbone. This simple design improves on the existing strength of your Jeep Wrangler without compromising the sleek and bold look of this iconic vehicle. The Rhino-Rack Backbone is fitted to the internal chassis of your Jeep Wrangler. This design will not hinder any of the current capabilities of your Jeep’s design.
- Description
Description
The Vortex RCL roof rack system attaches to the Rhino-Rack Backbone. This simple design improves on the existing strength of your Jeep Wrangler without compromising the sleek and bold look of this iconic vehicle. The Rhino-Rack Backbone is fitted to the internal chassis of your Jeep Wrangler. This design will not hinder any of the current capabilities of your Jeep’s design. The legs and cross bars of the RCL system can easily be removed when they are not required using a revolutionary trigger locking system.
Key Features:
- No tools required for installation and removal once system has been initially fitted
- Ideal for low clearance
- Simple design improves on the existing strength

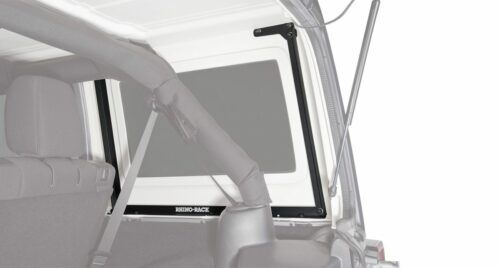

- Rhino-Rack Backbone is fitted to the internal chassis of your Jeep Wrangler
- Design will not hinder any of the current capabilities of your Jeep’s design
- A lockable cover plate that protects the locking mechanism, Masterkey compatible
- Fits the Rhino-Rack Vortex Bar
- Single person operation allows quick and easy attachment
- Tested to AS1235:2000 (Australian), ISO11154:2006 (City Crash/International) standards
- Lifetime Warranty
Components:
3x VA150B Vortex Bars (1500mm Black)
1 x SUB0800 Hardware Kit
1 x RCL6 (6 leg kit)
1x RJKB1 Backbone to suit JK Wrangler
1x QMVA05 Vortex Spacer (5mm)
