Hyundai iLoad & Imax 2008 – Sept 2021 Rola Heavy Duty Track Mount Roof Racks (3 bars) (CTM56-3)
Product load rating is how much weight can be added on top of the rack while driving on a paved or sealed road.
Your car’s maximum load capacity may be lower than the product load rating. In that case, the lowest load rating applies. Please refer to your vehicle manufacturer’s specifications.
Load rating overview
STATIC
When the vehicle is parked or stationary.
ON ROAD
Driving on paved or sealed roads.
OFF ROAD
Driving on unsealed or dirt roads.
- Static load rating: This is the maximum weight that can be added while the car is stationary. It can usually hold three times the on-road load rating. So, if you have a tent, that’s why you can sleep in it.
- On-road load rating: This is the weight limit while driving on sealed roads. This is what the product load rating refers to.
- Off-road load rating: This is the weight limit on unsealed roads. It is typically lower than the on-road capacity by 30%.
Why is the load rating displayed lower than on other websites?
Most other websites only display the load rating of the product. When possible, we aim to provide the true and real load rating, which needs to take into consideration the car make and model, the rack, and the fittings used. We have been fitting racks for over 50 years, so we have the experience to provide true and accurate load ratings.
Important: Overloading beyond these ratings can damage your vehicle, void warranties, or cause accidents. Always include the weight of the rack and accessories in your calculations.

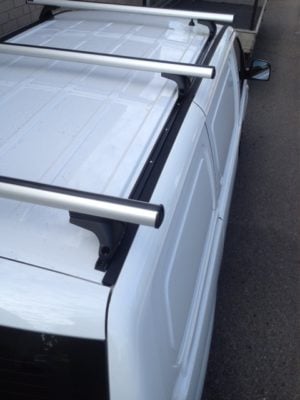

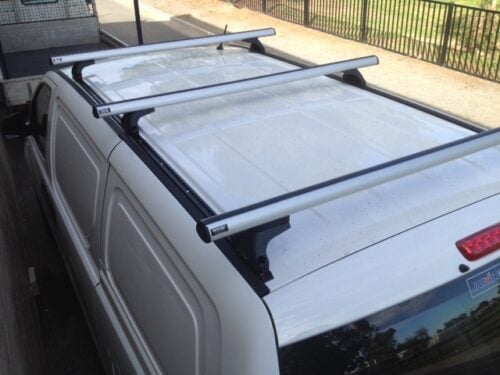

Longitudinal, strong aluminium tracks 2200mm long are permanently mounted to the vehicle roof. Tracks are installed with rivets in a location adjacent to the black trims in roof line. Adjust the bars along these tracks to better utilise the roof area. To fit this you will need to drill the roof, apply paint and silicon and rivet tracks to the roof. 100kgs carrying capacity over 3 bars. Bars will accept a full range of tradesman and sporting accessories.
- Description
- Additional information
Description

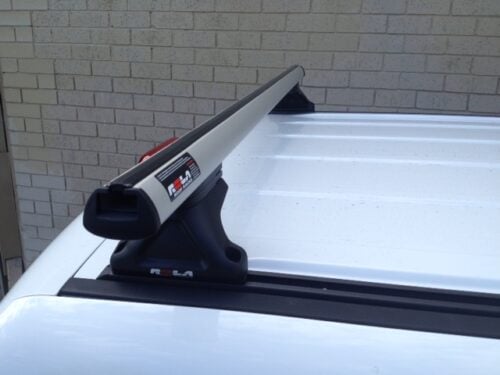

Longitudinal, strong aluminium 2200mm long tracks are permanently mounted to the vehicle roof. These tracks are fitted to the inside edge of the existing black trim on the roof. The bars then can slide along the length of these tracks. Available in Silver or as a special order in Black. Carrying capacity is 100kgs over 3 bars, spacers included to level the 3 bars on the roof. To install, the roof requires drilling, painting local to holes, applying silicon and installing rivets. Bars can then be accessorised to suit tradesman and sporting accessories. Bars Features a double aluminium strip in the centre to add additional strength throughout the bar. Bars feature an undercover strip to help reduce wind noise.Uniquely rounded edges help provide more aerodynamic efficiency and reduce drag on the bars when driving.
Additional information
Manufacturer | Rola |
---|
