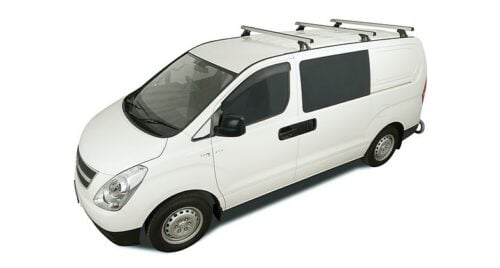

Hyundai iLoad & Imax 2008 – Sept 2021 Rhino-Rack Roof Racks (3 bars) (JA0890)
Product load rating is how much weight can be added on top of the rack while driving on a paved or sealed road.
Your car’s maximum load capacity may be lower than the product load rating. In that case, the lowest load rating applies. Please refer to your vehicle manufacturer’s specifications.
Load rating overview
STATIC
When the vehicle is parked or stationary.
ON ROAD
Driving on paved or sealed roads.
OFF ROAD
Driving on unsealed or dirt roads.
- Static load rating: This is the maximum weight that can be added while the car is stationary. It can usually hold three times the on-road load rating. So, if you have a tent, that’s why you can sleep in it.
- On-road load rating: This is the weight limit while driving on sealed roads. This is what the product load rating refers to.
- Off-road load rating: This is the weight limit on unsealed roads. It is typically lower than the on-road capacity by 30%.
Why is the load rating displayed lower than on other websites?
Most other websites only display the load rating of the product. When possible, we aim to provide the true and real load rating, which needs to take into consideration the car make and model, the rack, and the fittings used. We have been fitting racks for over 50 years, so we have the experience to provide true and accurate load ratings.
Important: Overloading beyond these ratings can damage your vehicle, void warranties, or cause accidents. Always include the weight of the rack and accessories in your calculations.
To install, the black trimming on the roof is removed and a 2.2m long track is rivetted into place, tracks finishes flush with roof line. Bars are the able to be positioned anywhere along track to suit your carrying needs. Carry capcaity over 3 bars is 125kgs. Leg height spacers are used to make bars level.
- Description
- Additional information
- Specifications
Description
Utilising our tough Heavy Duty bars, this system offers you compatibility with a wide selection of Rhino-Rack accessories. So whether you’re a traveller, cyclist, surfer or tradesperson – the Heavy Duty RLTF roof rack system is your perfect load carrying solution.
To install, the black trimming on the roof is removed and a 2.2m long track is rivetted into place, tracks finishes flush with roof line. Bars are the able to be positioned anywhere along track to suit your carrying needs. Carry capcaity over 3 bars is 125kgs. Leg height spacers are used to make bars level.
Components:
RLTF legs x 3 pairs
RB1500S x 3 1500mm silver commercial bars
LHSPAIR x 1 Leg Height spacers
LHS2PAIR x 1 Leg Height spacers
RTS518 to suit Hyundai I-load
Features:
High profile design is ideal for curved roofs or levelling crossbars
Increased flexibility – slide your bars along the track to accommodate various load types
Strong and built to last
Suitable for heavy duty off-road use
Compatible with a wide range of accessories
Tested and approved to meet Australian Standards AS1235-2000
Fitting Instructions
Additional information
Manufacturer | Rhino-Rack |
---|
- Mount Style: Track Mount
- Warranty: Lifetime
- # Of Bars: 3
- Colour: Silver
- Bar Type: Heavy Duty
- Bar Length: 1500mm
- Fixture: Fixed
- Leg Profile: RLTF
- Bar Style: Overhang Bar
- Track Type: RTS5
