Holden Colorado/Isuzu D-Max 4dr Ute Crew Cab 06/12on Rhino-Rack Backbone Pioneer Tradie (1528mmx1236mm) (JA9027)
$1,898.00 $1,708.20 AUD*Price Match Guarantee
For vehicles without the factory rails, there are threads under the black trim, ready to bolt on the backbone. No need to lower internal lining in vehicle. For vehicle with existing factory fitted rails, these rails need removing, this is done by loosening bolts from top of vehicle, no need to loosen internal lining.
- Description
- Specifications
- FITTING INSTRUCTIONS
Description

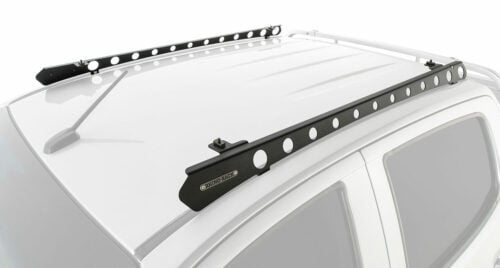

For vehicles without the factory rails, there are threads under the black trim, ready to bolt on the backbone. No need to lower internal lining in vehicle.
For vehicle with existing factory fitted rails, (Z71 Colorado and DMax) these rails need removing, this is done by loosening bolts from top of vehicle, no need to loosen internal lining. The backbone is then fixed into the existing holes, all bolts and nuts included for install.
Please note it is possible to remove the Factory Rails on the Holden Colorado Z71 to install the Backbone Mounting System.

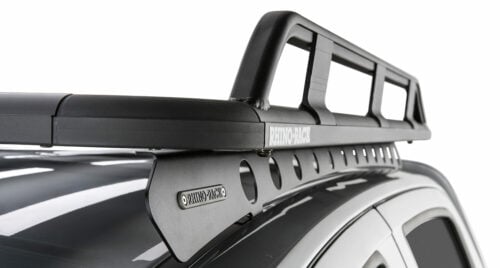

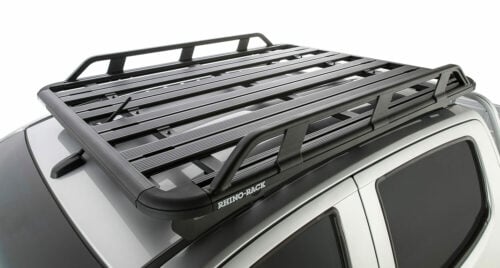

The Pioneer Tradie is built with tough-as-nails reinforced nylon and aluminium and has been tested in the harshest outdoor conditions. It’s also non-corrosive so it won’t rust or fade. It also features fully-welded side rails to make loading and unloading your gear easier. You can rest assured knowing that your equipment is safe on the road.
Tradespeople will also love the tray’s compatibility with the a variety of Rhino-Rack accessories. A Rhino-Rack Rear Roller would make loading ladders and planks on to the tray a breeze. Our Shovel and High Lifting Jack Holder bracket, Rhino-Rack ladder and Pioneer Combination Bracket are also some of the many available accessories that will fit the Tradie Tray.
Even if you’re not a tradie – the Pioneer Tradie still has great potential. Imagine being able to easily carry your fishing rods along with the rest of your weekend gear on the one tray. Or picking up supplies for your DIY home renovation and not worrying about how you’ll get it back home.
Get your load from A to B hassle free with the Pioneer Tradie.
Features:
- Open front and rear ends allow carrying of long loads (eg. ladders, pipes)
- Stylish and aerodynamically designed to minimise wind drag and noise on the road
- Non corrosive so it won’t rust or fade
- Made from strong and durable materials and allows you maximum carrying capacity
- Includes fully welded side rails which provides extra strength and ease of loading/unloading
- Bars included with the Pioneer Tradie
- Compatible with many Rhino-Rack accessories
Components:
1x 45100B Pioneer Tradie (1528mmx1236mm)
1x RIDB1 Backbone Mounting system for Colorado/D-Max
For vehicles without the factory rails, there are threads under the black trim, ready to bolt on the backbone. No need to lower internal lining in vehicle.
For vehicle with existing factory fitted rails, (Z71 Colorado and DMax) these rails need removing, this is done by loosening bolts from top of vehicle, no need to loosen internal lining. The backbone is then fixed into the existing holes, all bolts and nuts included for install.
In some situations the Dmax SX model does not have some threads exposed in the roof under the black trim. This requires drilling thru a thin top skin to locate these threads, please contact our friendly staff for options, by email.
- External Dimensions: 1528
- Cross Bars Inc: Included
- Pioneer Systems: Platform
- Colour: Black
- Pioneer Systems: Tradie
- Pioneer Systems: Tray
- Pioneer Systems: Tradie
- # Of Planks: 4
- Warranty: 5 Years
- Product Weight: 21.5
- Internal Dimensions: 1528
- Internal Dimensions: 1146
- External Dimensions: 1236
- Internal Dimensions: 95
- External Dimensions: 135
- Static Load Rating: 320kg
