GWM Tank 300 Gen 1 With Raised Rail 1/2023 Onwards Sportz Black 2 Bar Roof Rack (JC-02392)
$357.00 AUD
Product load rating is how much weight can be added on top of the rack while driving on a paved or sealed road.
Your car’s maximum load capacity may be lower than the product load rating. In that case, the lowest load rating applies. Please refer to your vehicle manufacturer’s specifications.
Load rating overview
STATIC
When the vehicle is parked or stationary.
ON ROAD
Driving on paved or sealed roads.
OFF ROAD
Driving on unsealed or dirt roads.
- Static load rating: This is the maximum weight that can be added while the car is stationary. It can usually hold three times the on-road load rating. So, if you have a tent, that’s why you can sleep in it.
- On-road load rating: This is the weight limit while driving on sealed roads. This is what the product load rating refers to.
- Off-road load rating: This is the weight limit on unsealed roads. It is typically lower than the on-road capacity by 30%.
Why is the load rating displayed lower than on other websites?
Most other websites only display the load rating of the product. When possible, we aim to provide the true and real load rating, which needs to take into consideration the car make and model, the rack, and the fittings used. We have been fitting racks for over 50 years, so we have the experience to provide true and accurate load ratings.
Important: Overloading beyond these ratings can damage your vehicle, void warranties, or cause accidents. Always include the weight of the rack and accessories in your calculations.

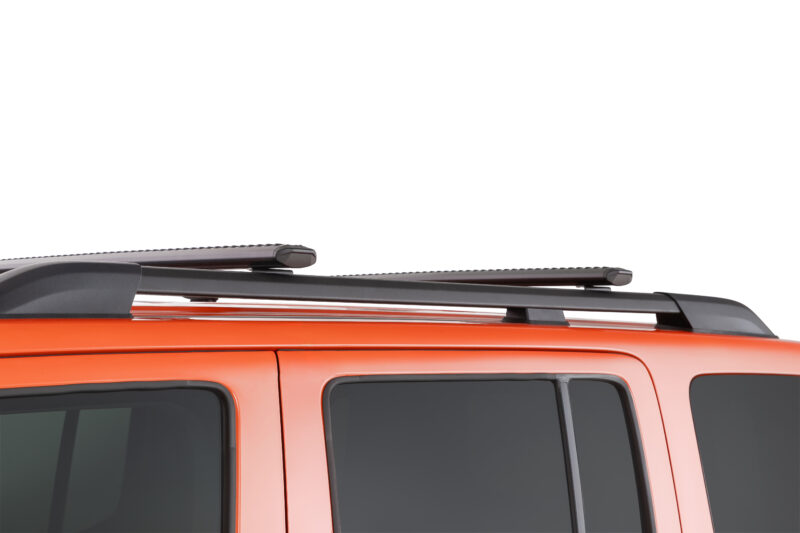

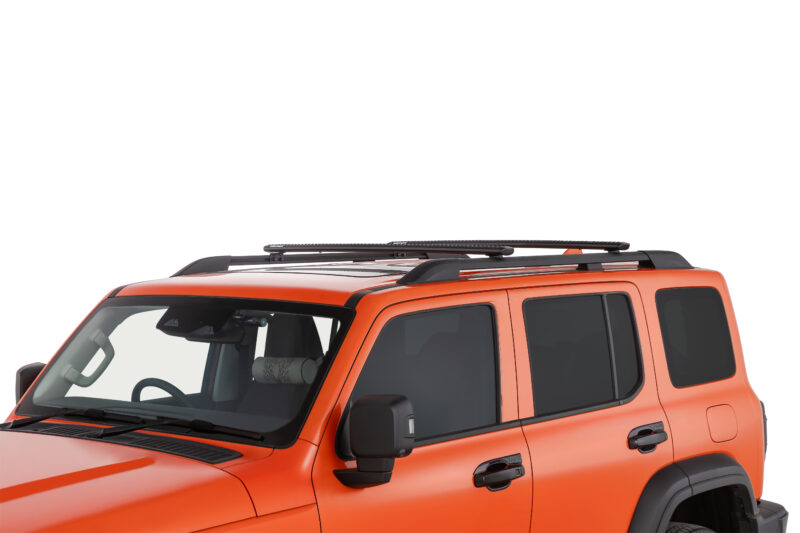

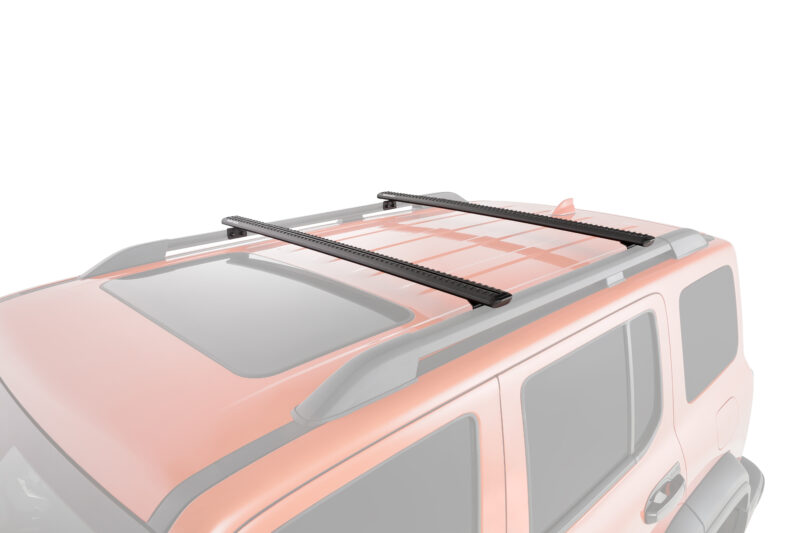

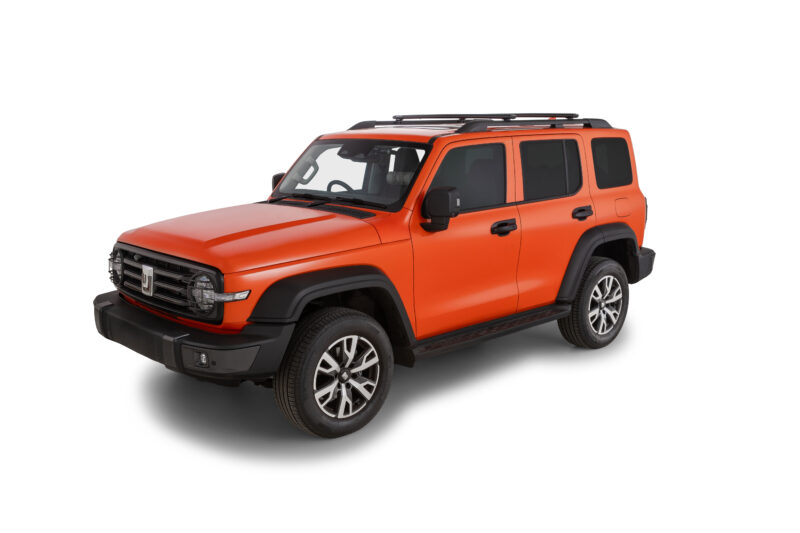

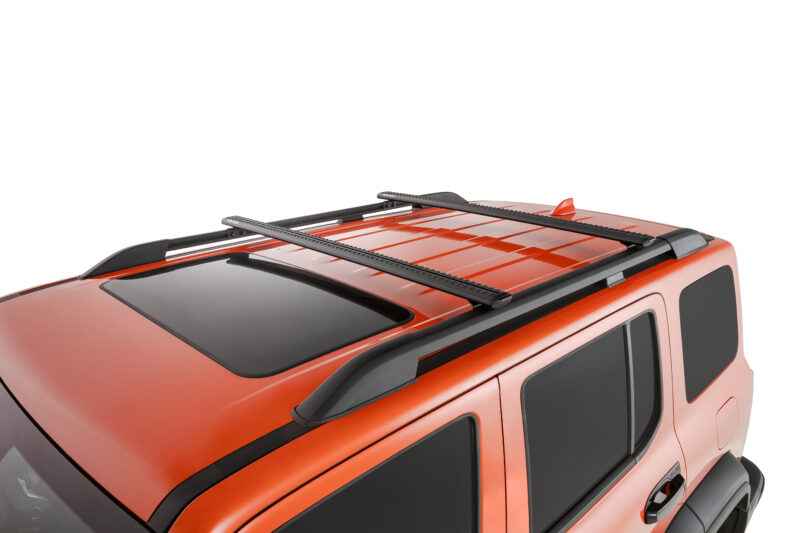

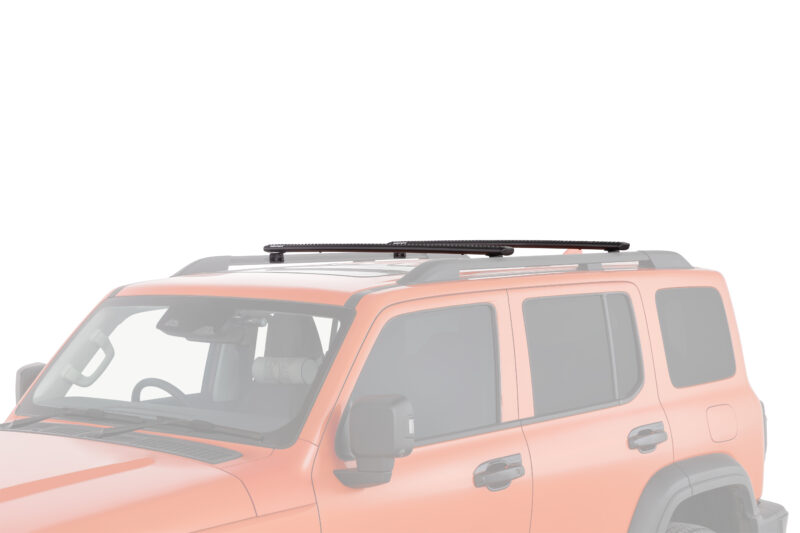

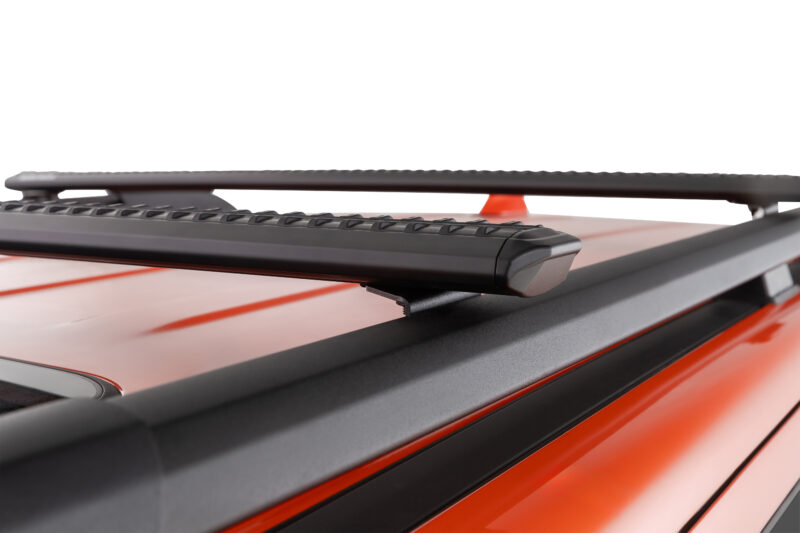

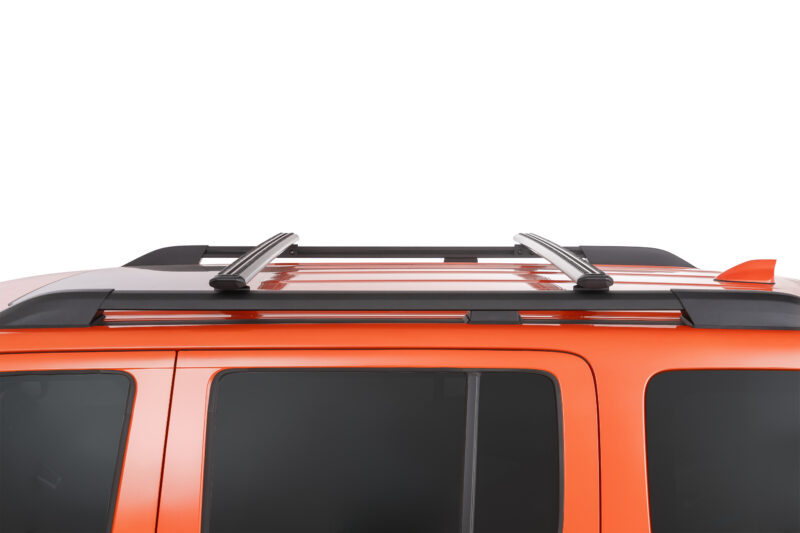

The bespoke rail bracket roof rack system is specifically designed to fit GWM Tank 300’s factory inner roof rails.
- Description
- Additional information
Description
The bespoke rail bracket roof rack system is specifically designed to fit GWM Tank 300’s factory inner roof rails. By attaching via your vehicle’s rails, you can be assured of a perfect fit.LEARN MORE ABOUT SPORTZ BAR
Overview
Utilising our highly regarded Sportz bars, this system offers you compatibility with a wide selection of Rhino-Rack accessories. So whether you’re a traveller, cyclist, surfer or tradesperson – the Sportz roof rack system has you covered.
Features:
- Removable and easy to install
- Locking cover with a compartment for an Allen key
- Low profile
- Maximises roof width with overhang bars
- Suitable for heavy off-road use
- Tested and approved to Australian Standards AS1235-2000
Components
- JC-02392 x RCP92-BK
- 1 x SZ126B
Product Specifications
- Bar Type: Sportz
- Bar Style: Overhang Bar
- # Of Bars: 2
- Manufacturer: Rhino-Rack
- Load Rating: 100
- Off Road LR: 0
- Added Height: 92
Package Shipping Dimensions
- Length: 15.00 cm
- Width: 12.40 cm
- Height: 11.50 cm
- Weight: 20.00 kg
Additional information
Bar Type | Sportz |
---|---|
Bar Style | Overhang Bar |
# Of Bars | 2 |
Manufacturer | Rhino-Rack |
Make | GWM |
Model | TANK300 |
Model Year | 2023 Onwards |
Load Rating | 100 |
Off Road LR | 0 |
Added Height | 92 |
